User defined Loader#

[1]:

import pystare
import starepandas

import geopandas
import numpy

import matplotlib as mpl
import matplotlib.pyplot as plt

[2]:

DEFAULT_DPI = mpl.rcParamsDefault['figure.dpi']
mpl.rcParams['figure.dpi'] = 1.5 * DEFAULT_DPI
mpl.rcParams['legend.fontsize'] = 6

[3]:

import starepandas.io.granules.modis

class ModXX(starepandas.io.granules.modis.Modis):

    def __init__(self, file_path, sidecar_path=None):
        super(ModXX, self).__init__(file_path, sidecar_path)
        self.nom_res = '5km'

    def read_data(self):
        dataset_names = ['Scan_Start_Time', 'Solar_Zenith', 'Solar_Azimuth',
                         'Sensor_Zenith', 'Sensor_Azimuth', 'Water_Vapor_Infrared']

        dataset_names2 = ['Cloud_Mask_QA', 'Water_Vapor_Near_Infrared',
                          'Water_Vaport_Corretion_Factors', 'Quality_Assurance_Near_Infrared', 'Quality_Assurance_Infrared']
        for dataset_name in dataset_names:
            self.data[dataset_name] = self.hdf.select(dataset_name).get()

starepandas.io.granules.granule_factory_library['MODXX']=ModXX

starepandas.io.granules.granule_factory_library

[3]:

{'MOD09GA|MYD09GA': starepandas.io.granules.modis.Mod09GA,
 'MOD05|MYD05': starepandas.io.granules.modis.Mod05,
 'MOD03|MYD03': starepandas.io.granules.modis.Mod03,
 'MOD09|MYD09': starepandas.io.granules.modis.Mod09,
 'VNP02DNB|VJ102DNB': starepandas.io.granules.viirsl2.VNP02DNB,
 'VNP03DNB|VJ103DNB': starepandas.io.granules.viirsl2.VNP03DNB,
 'VNP03MOD|VJ103MOD': starepandas.io.granules.viirsl2.VNP03MOD,
 'VNP03IMG|VJ103IMG': starepandas.io.granules.viirsl2.VNP03IMG,
 'VNP09': starepandas.io.granules.viirsl2.VNP09,
 'CLDMSKL2VIIRS': starepandas.io.granules.viirsl2.CLDMSKL2VIIRS,
 'SSMIS': starepandas.io.granules.ssmis.SSMIS,
 'ATMS': starepandas.io.granules.atms.ATMS,
 'MODXX': __main__.ModXX}

[4]:

mod=None

[5]:

granule_name="s3://eis-dh-fire/mod14/raw/MOD14.A2020214.0520.061.2020340090643.hdf"

[6]:

granule_name="../starepandas//datasets/MODXX.hdf"

[7]:

mod = starepandas.read_granule(granule_name, sidecar=False, latlon=False, add_stare=True)

[8]:

mod = starepandas.read_granule(granule_name, sidecar=True, latlon=True)

[9]:

mod['stare_hex']=mod['sids'].apply(hex)

[10]:

mod['wiv0']=mod['Water_Vapor_Infrared'].apply(lambda x: min(0,x))

[11]:

mod['pod']=mod['sids'].apply(lambda sid: pystare.spatial_clear_to_resolution(pystare.spatial_coerce_resolution(sid,7)))

[12]:

mod['pod_hex']=mod['pod'].apply(lambda sid: hex(sid))

[13]:

mod

[13]:

	lat	lon	sids	Scan_Start_Time	Solar_Zenith	Solar_Azimuth	Sensor_Zenith	Sensor_Azimuth	Water_Vapor_Infrared	stare_hex	wiv0	pod	pod_hex
0	53.201778	-15.933996	4298473764500464809	8.493984e+08	14709	-2296	6534	-8952	-9999	0x3ba73f1d5162e4a9	-9999	4298439553720516615	0x3ba7200000000007
1	53.203171	-16.288101	4298458168380511209	8.493984e+08	14700	-2354	6472	-8980	-9999	0x3ba730ee103253e9	-9999	4298439553720516615	0x3ba7200000000007
2	53.203518	-16.629105	4297394569014717897	8.493984e+08	14692	-2410	6411	-9008	-9999	0x3ba3699789d0adc9	-9999	4297384022557851655	0x3ba3600000000007
3	53.202934	-16.957928	4297300698872999369	8.493984e+08	14684	-2464	6351	-9034	-9999	0x3ba31437b15cedc9	-9999	4297278469441585159	0x3ba3000000000007
4	53.201508	-17.275316	4297290857922121161	8.493984e+08	14676	-2516	6291	-9059	-9999	0x3ba30b446afb4dc9	-9999	4297278469441585159	0x3ba3000000000007
...	...	...	...	...	...	...	...	...	...	...	...	...	...
109615	64.084297	-66.281410	3727686638370615689	8.493987e+08	12157	-7468	6223	4800	-9999	0x33bb673f5a0cf189	-9999	3727678669695483911	0x33bb600000000007
109616	63.960953	-66.591354	3727661374545790857	8.493987e+08	12147	-7505	6282	4772	-9999	0x33bb504528bf0789	-9999	3727643485323395079	0x33bb400000000007
109617	63.831799	-66.911255	3727838256925064969	8.493987e+08	12137	-7544	6342	4743	-9999	0x33bbf124cc213f09	-9999	3727819407183839239	0x33bbe00000000007
109618	63.698635	-67.236229	3727843063731949801	8.493987e+08	12126	-7583	6402	4714	-9999	0x33bbf583f82590e9	-9999	3727819407183839239	0x33bbe00000000007
109619	63.551617	-67.589508	3727853163225616425	8.493987e+08	12115	-7625	6464	4682	-9999	0x33bbfeb370e11029	-9999	3727819407183839239	0x33bbe00000000007

109620 rows × 13 columns

[14]:

granule_name="../starepandas/datasets/MOD05_L2.A2019336.0000.061.2019336211522.hdf"

[15]:

mod = starepandas.read_granule(granule_name, sidecar=True, latlon=True)

[16]:

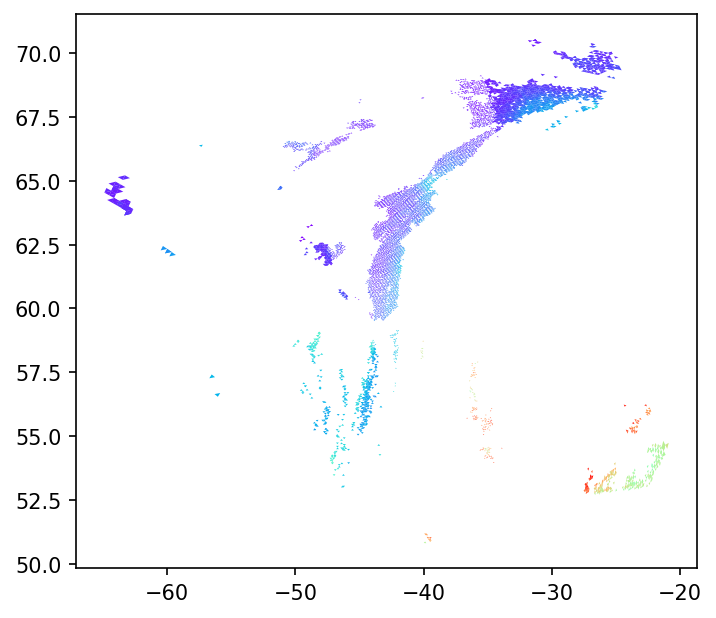

ax = plt.axes()
mod.set_trixels(mod.make_trixels(), inplace=True)
mod.plot(ax=ax, trixels=True
         ,boundary=False, column='Water_Vapor_Infrared', linewidth=0.2
         ,cmap='rainbow')

del ax

[17]:

from starepandas.io.granules.viirsl2 import VIIRSL2

class VNP03IMG(VIIRSL2):

    def __init__(self, file_path, sidecar_path=None):
        super(VNP03IMG,self).__init__(file_path, sidecar_path)

    def read_data(self):
        """
        reads the data from a VNP03IMG granule into the self.data dictionary.
        Two variables are read:

        a) land_water_mask
        1: Shallow_Ocean 2: Land 3: Coastline 4: Shallow_Inland 5: Ephemeral 6: Deep_Inland 7: Continental 8: Deep_Ocean
        b) quality_flag
        1: Input_invalid 2: Pointing_bad 3: Terrain_bad
        :return:
        """

        group = self.netcdf.groups['geolocation_data']
        self.data['land_water_mask'] = group['land_water_mask'][:].data
        self.data['quality_flag'] = group['quality_flag'][:].data


class VNP02IMG(VIIRSL2):

    def __init__(self, file_path, sidecar_path=None):
        super(VNP02IMG, self).__init__(file_path, sidecar_path)
        self.companion_prefix = 'VNP03IMG'

    def read_data(self):
        for band in ['I04','I05']:
            IMG = self.netcdf.groups['observation_data'][band][:].data
            quality_flags = self.netcdf.groups['observation_data'][band+'_quality_flags'][:].data

            # TODO Do we need to allocate these first?
            #
            self.data[band+'_observations']  = IMG
            self.data[band+'_quality_flags'] = quality_flags

    def latlon(self):
        pass

    def read_sidecar_cover(self, sidecar_path=None):
        pass

    def read_sidecar_index(self, sidecar_path=None):
        pass

starepandas.io.granules.granule_factory_library['VNP02IMG']=VNP02IMG
starepandas.io.granules.granule_factory_library['VNP03IMG']=VNP03IMG

starepandas.io.granules.granule_factory_library

[17]:

{'MOD09GA|MYD09GA': starepandas.io.granules.modis.Mod09GA,
 'MOD05|MYD05': starepandas.io.granules.modis.Mod05,
 'MOD03|MYD03': starepandas.io.granules.modis.Mod03,
 'MOD09|MYD09': starepandas.io.granules.modis.Mod09,
 'VNP02DNB|VJ102DNB': starepandas.io.granules.viirsl2.VNP02DNB,
 'VNP03DNB|VJ103DNB': starepandas.io.granules.viirsl2.VNP03DNB,
 'VNP03MOD|VJ103MOD': starepandas.io.granules.viirsl2.VNP03MOD,
 'VNP03IMG|VJ103IMG': starepandas.io.granules.viirsl2.VNP03IMG,
 'VNP09': starepandas.io.granules.viirsl2.VNP09,
 'CLDMSKL2VIIRS': starepandas.io.granules.viirsl2.CLDMSKL2VIIRS,
 'SSMIS': starepandas.io.granules.ssmis.SSMIS,
 'ATMS': starepandas.io.granules.atms.ATMS,
 'MODXX': __main__.ModXX,
 'VNP02IMG': __main__.VNP02IMG,
 'VNP03IMG': __main__.VNP03IMG}

[18]:

granule_name = "../tests/data/granules/viirs/VNP03DNB.A2022308.1930.002.2022309041547.nc"

[19]:

%env OMP_NUM_THREADS=8
%env OMP_NUM_THREADS

env: OMP_NUM_THREADS=8

[19]:

'8'

[20]:

%env OMP_NUM_THREADS=4
vnp=None
del vnp
%time vnp = starepandas.read_granule(granule_name, sidecar=True, latlon=True)

env: OMP_NUM_THREADS=4
CPU times: user 1.79 s, sys: 2.02 s, total: 3.82 s
Wall time: 4.14 s

Creating PODs#

[21]:

vnp = vnp[0:100_000]

[22]:

vnp['stare_hex']=vnp['sids'].apply(hex)

[23]:

vnp['pod']=vnp['sids'].apply(lambda sid: pystare.spatial_clear_to_resolution(pystare.spatial_coerce_resolution(sid, 7)))

[24]:

vnp['pod_hex']=vnp['pod'].apply(lambda sid: hex(sid))

[ ]:
