STAREPandas Multiprocessing#

[1]:

import dask
import numpy
import starepandas
import geopandas
import pystare
import pandas
import matplotlib.pyplot as plt
import datetime

[2]:

us_all = geopandas.read_file('../tests/data/tl_2017_us_state.gpkg')
us_all = us_all.to_crs('EPSG:4326')

[3]:

us = us_all[0:25]
us

[3]:
REGION DIVISION STATEFP STATENS GEOID STUSPS NAME LSAD MTFCC FUNCSTAT ALAND AWATER INTPTLAT INTPTLON geometry
0 3 5 54 01779805 54 WV West Virginia 00 G4000 A 62265662566 489840834 +38.6472854 -080.6183274 POLYGON ((-81.74725 39.09538, -81.74635 39.096...
1 3 5 12 00294478 12 FL Florida 00 G4000 A 138911437206 31398800291 +28.4574302 -082.4091478 MULTIPOLYGON (((-82.98748 24.62538, -82.98748 ...
2 2 3 17 01779784 17 IL Illinois 00 G4000 A 143784114293 6211277447 +40.1028754 -089.1526108 POLYGON ((-91.18529 40.63780, -91.17510 40.643...
3 2 4 27 00662849 27 MN Minnesota 00 G4000 A 206229176104 18944967530 +46.3158148 -094.1996628 POLYGON ((-96.78438 46.63050, -96.78434 46.630...
4 3 5 24 01714934 24 MD Maryland 00 G4000 A 25150696145 6980371026 +38.9466584 -076.6744939 POLYGON ((-77.45881 39.22027, -77.45866 39.220...
5 1 1 44 01219835 44 RI Rhode Island 00 G4000 A 2677997539 1323452846 +41.5974187 -071.5272723 MULTIPOLYGON (((-71.67881 41.15891, -71.67626 ...
6 4 8 16 01779783 16 ID Idaho 00 G4000 A 214048160737 2393355752 +44.3484222 -114.5588538 POLYGON ((-116.89971 44.84061, -116.89967 44.8...
7 1 1 33 01779794 33 NH New Hampshire 00 G4000 A 23187445452 1028643155 +43.6726907 -071.5843145 POLYGON ((-72.32990 43.60021, -72.32984 43.600...
8 3 5 37 01027616 37 NC North Carolina 00 G4000 A 125919712692 13470113896 +35.5397100 -079.1308636 POLYGON ((-82.41674 36.07283, -82.41660 36.073...
9 1 1 50 01779802 50 VT Vermont 00 G4000 A 23873457570 1031134839 +44.0604795 -072.6733274 POLYGON ((-73.31328 44.26413, -73.31274 44.265...
10 1 1 09 01779780 09 CT Connecticut 00 G4000 A 12542619303 1815495323 +41.5798637 -072.7466572 POLYGON ((-73.51808 41.66672, -73.51807 41.666...
11 3 5 10 01779781 10 DE Delaware 00 G4000 A 5047241079 1398670234 +38.9986239 -075.4416920 POLYGON ((-75.76007 39.29682, -75.76010 39.297...
12 4 8 35 00897535 35 NM New Mexico 00 G4000 A 314191415563 733669653 +34.4346843 -106.1316181 POLYGON ((-106.00632 36.99527, -106.00531 36.9...
13 4 9 06 01779778 06 CA California 00 G4000 A 403483182192 20484637928 +37.1551773 -119.5434183 MULTIPOLYGON (((-119.63607 33.28071, -119.6347...
14 1 2 34 01779795 34 NJ New Jersey 00 G4000 A 19049723313 3542963551 +40.1072744 -074.6652012 POLYGON ((-75.18960 40.59178, -75.18977 40.592...
15 2 3 55 01779806 55 WI Wisconsin 00 G4000 A 140275464079 29359527964 +44.6309071 -089.7093916 POLYGON ((-92.88707 45.64415, -92.88671 45.644...
16 4 9 41 01155107 41 OR Oregon 00 G4000 A 248604328809 6195045325 +43.9717125 -120.6229578 POLYGON ((-124.06545 45.78305, -124.06206 45.7...
17 2 4 31 01779792 31 NE Nebraska 00 G4000 A 198957965731 1370523694 +41.5433014 -099.8118616 POLYGON ((-104.05264 42.00172, -104.05263 42.0...
18 1 2 42 01779798 42 PA Pennsylvania 00 G4000 A 115881477379 3397554419 +40.9024957 -077.8334514 POLYGON ((-80.51935 41.84956, -80.51938 41.850...
19 4 9 53 01779804 53 WA Washington 00 G4000 A 172111800165 12560067439 +47.4073238 -120.5757999 POLYGON ((-123.24792 48.28456, -123.24779 48.2...
20 3 7 22 01629543 22 LA Louisiana 00 G4000 A 111904803121 23746413153 +30.8634368 -091.7987173 POLYGON ((-92.06910 33.00816, -92.06904 33.008...
21 3 5 13 01705317 13 GA Georgia 00 G4000 A 149177524294 4733385577 +32.6295789 -083.4235109 POLYGON ((-85.38658 33.90172, -85.38659 33.901...
22 3 6 01 01779775 01 AL Alabama 00 G4000 A 131174431216 4592944701 +32.7396323 -086.8434593 POLYGON ((-88.13999 34.58170, -88.13997 34.581...
23 4 8 49 01455989 49 UT Utah 00 G4000 A 212884846341 7000199770 +39.3349925 -111.6563326 POLYGON ((-114.04703 39.90610, -114.04702 39.9...
24 2 3 39 01085497 39 OH Ohio 00 G4000 A 105833282399 10264451012 +40.4149297 -082.7119975 POLYGON ((-84.80325 40.98939, -84.80324 40.991...

Parallel SID lookup#

[4]:

def sids_from_geoseries(series, level, convex=False, force_ccw=True, n_workers=1):
    sids = []
    for geom in series:
        sids_row = starepandas.sids_from_shapely(geom=geom, level=level, convex=convex, force_ccw=force_ccw)
        sids.append(sids_row)
    sids = numpy.array(sids, dtype='object')  # Has to be object to suppress VisibleDeprecationWarning
    return sids

[5]:

n_workers = 2

ddf = dask.dataframe.from_pandas(us.geometry, npartitions=n_workers)
meta = {'sids': 'uint64'}

res = ddf.map_partitions(lambda df: numpy.array(sids_from_geoseries(df, level=7, convex=False, force_ccw=True, n_workers=1), dtype='object'),
                         meta=meta)

sids = res.compute(scheduler='processes')

High level#

[6]:

stare = starepandas.sids_from_geoseries(us.geometry,
                                        level=7,
                                        convex=False,
                                        force_ccw=True,
                                        n_partitions=4)

Parallel Trixel lookup#

Manual / low level#

[7]:

n_cores = 4

us['sids'] = stare
ddf = dask.dataframe.from_pandas(us['sids'], npartitions=n_cores)
meta = {'trixels': 'object'}

res = ddf.map_partitions(lambda df: numpy.array(starepandas.trixels_from_stareseries(df)), meta=meta)
trixels = res.compute(scheduler='processes')

/home/griessbaum/.virtualenvs/starepandas/lib/python3.10/site-packages/geopandas/geodataframe.py:1443: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame.
Try using .loc[row_indexer,col_indexer] = value instead

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  super().__setitem__(key, value)

High level#

[8]:

stare = pandas.Series(stare)
trixels = starepandas.trixels_from_stareseries(stare, n_partitions=4)

Parallel instantiation#

[9]:

us = starepandas.STAREDataFrame(us,
                                add_sids=True,
                                level=7,
                                add_trixels=True,
                                n_partitions=4)

[10]:

fig, ax = plt.subplots(figsize=(7,7), dpi=100)
ax.grid(True)

us.plot(ax=ax, trixels=True, column='NAME')

[10]:

<Axes: >
../../_images/examples_notebooks_parallel_16_1.png

Visualization#

[11]:

fig, ax = plt.subplots(figsize=(7,7), dpi=100)
ax.grid(True)

hawaii = us[us['NAME']=='Maryland']
hawaii.plot(ax=ax, trixels=True)
hawaii

[11]:
REGION DIVISION STATEFP STATENS GEOID STUSPS NAME LSAD MTFCC FUNCSTAT ALAND AWATER INTPTLAT INTPTLON geometry sids trixels
4 3 5 24 01714934 24 MD Maryland 00 G4000 A 25150696145 6980371026 +38.9466584 -076.6744939 POLYGON ((-77.45881 39.22027, -77.45866 39.220... [3137320090416971783, 3164341688181194759, 316... MULTIPOLYGON (((-79.56820 39.46980, -79.99541 ...

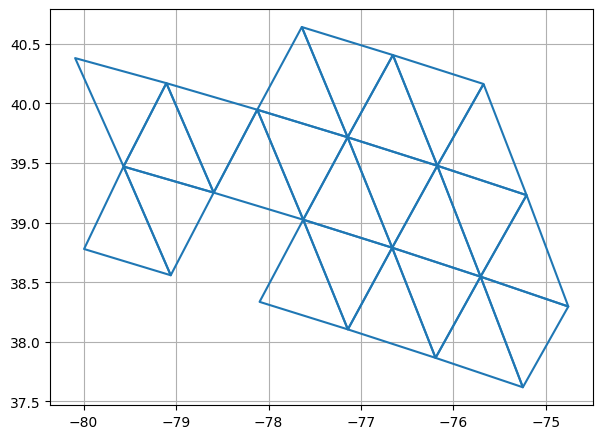

../../_images/examples_notebooks_parallel_18_1.png

Parallel dissolve#

[12]:

us_regions = us.stare_dissolve(by='REGION', aggfunc='sum', num_workers=4, geom=False)

[13]:

trixels = us_regions.make_trixels(n_partitions=4)
us_regions.set_trixels(trixels, inplace=True)

[14]:

fig, ax = plt.subplots(figsize=(7,7), dpi=100)
ax.grid(True)

ax.set_xlim(-170, -50)
ax.set_ylim(0, 80)

us_regions.reset_index().plot(ax=ax, trixels=True, column='REGION')

[14]:

<Axes: >

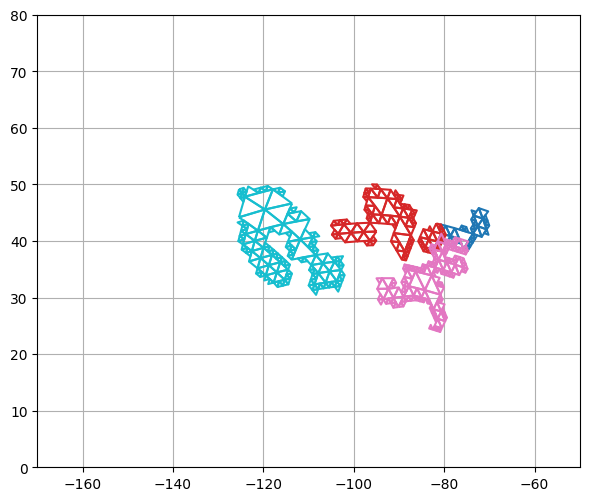

../../_images/examples_notebooks_parallel_22_1.png

Parallel Intersects#

Cover#

[15]:

us = starepandas.STAREDataFrame(us, add_sids=True,
                                level=6, add_trixels=True, n_partitions=4)

[16]:

filepath = '../tests/data/granules/viirs/VNP03DNB.A2022308.1930.002.2022309041547.nc'
vnp03 = starepandas.io.granules.VNP03DNB(filepath)
vnp03.read_sidecar_cover()
vnp03_cover = vnp03.stare_cover
vnp03_cover_df = starepandas.STAREDataFrame({'sids': vnp03.stare_cover}, sids='sids', add_trixels=True)

[17]:

fig, ax = plt.subplots(figsize=(7,7), dpi=100)
ax.grid(True)

ax.set_xlim(-130, -60)
ax.set_ylim(15, 50)

us.plot(ax=ax, column='NAME', trixels=True, linewidth=0.5)
vnp03_cover_df.plot(ax=ax, trixels=True, color='k', linewidth=0.5)

[17]:

<Axes: >

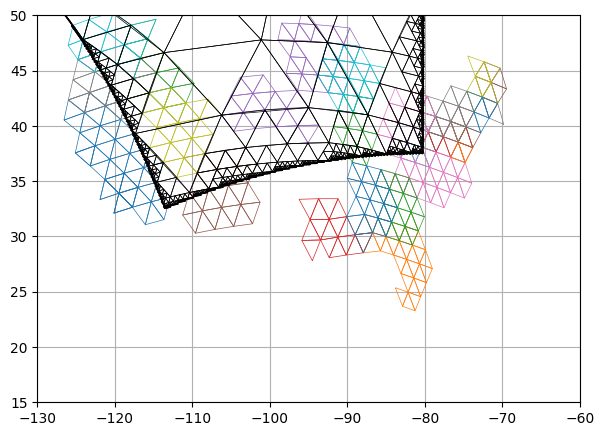

../../_images/examples_notebooks_parallel_27_1.png
[18]:

def series_intersects(other, series, method=1, n_workers=1):
    """
    Returns a bool series of length len(series).
    True for every row in which row intersects other.
    """
    other = numpy.array([other]).flatten()

    if n_workers > len(series):
        # Cannot have more partitions than rows
        n_workers = len(series)

    if n_workers == 1:
        if series.dtype in [numpy.dtype('uint64'), numpy.dtype('int64'), pandas.UInt64Dtype(), pandas.Int64Dtype()]:
            # We have a series of sids; don't need to iterate. Can send the whole array to pystare/
            intersects = pystare.intersects(other, series, method)
        else:
            intersects = []
            for sids in series:
                if len(list(sids)) < len(other):
                    # If we do method 1, larger item first is faster
                    intersects.append(pystare.intersects(other, sids, method).any())
                else:
                    intersects.append(pystare.intersects(sids, other, method).any())
            intersects = numpy.array(intersects)
    else:
        ddf = dask.dataframe.from_pandas(series, npartitions=n_workers)
        meta = {'intersects': 'bool'}
        res = ddf.map_partitions(lambda df: series_intersects(other, df, method, 1), meta=meta)
        intersects = res.compute(scheduler='processes')
    return intersects

[19]:

a = numpy.array(vnp03_cover)

[20]:

start = datetime.datetime.now()
intersects = series_intersects(a, us['sids'] , 1, 1)
print(datetime.datetime.now() - start)

0:00:00.005978

[21]:

start = datetime.datetime.now()
intersects = series_intersects(a, us['sids'], 1, 5)
print(datetime.datetime.now() - start)

0:00:01.347456

[22]:

intersects

[22]:

array([ True, False,  True,  True,  True, False,  True, False,  True,
       False, False, False,  True,  True, False,  True,  True,  True,
        True,  True, False, False, False,  True,  True])

[23]:

print(list(us[intersects]['NAME']))

['West Virginia', 'Illinois', 'Minnesota', 'Maryland', 'Idaho', 'North Carolina', 'New Mexico', 'California', 'Wisconsin', 'Oregon', 'Nebraska', 'Pennsylvania', 'Washington', 'Utah', 'Ohio']

iFOVs#

[42]:

import copy
filepath = '../tests/data/granules/viirs/VNP03DNB.A2022308.1930.002.2022309041547.nc'
vnp03 = starepandas.read_granule(filepath, sidecar=True, xy=True)
vnp03 = copy.copy(vnp03[vnp03.y<1500])

[55]:

state_sids = us[us['NAME']=='Utah']['sids'].iloc[0]
state_sids

[55]:

array([3341811660997263366, 3341952398485618694, 3342093135973974022,
       3342374610950684678, 3342515348439040006, 3342656085927395334,
       3342937560904105990, 3343078298392461318, 3343219035880816646,
       3343359773369171974, 3343500510857527302, 3343641248345882630,
       3343781985834237958, 3349130010391740422, 3349270747880095750,
       3349411485368451078, 3349552222856806406, 3349833697833517062,
       3349974435321872390, 3350115172810227718, 3350396647786938374,
       3350537385275293702])

[56]:

start = datetime.datetime.now()
intersects = series_intersects(state_sids, vnp03['sids'])
print(datetime.datetime.now() - start)

0:00:16.396078

[50]:

start = datetime.datetime.now()
intersects = series_intersects(state_sids, vnp03['sids'], 1, 60)
print(datetime.datetime.now() - start)

0:00:11.133490

[57]:

intersects.sum()/vnp03.index.size

[57]:

0.13730413385826773

[59]:

vnp03[intersects]

[59]:
sids x y moon_illumination_fraction land_water_mask quality_flag
1194175 3341882033058642606 3423 293 85.869995 1 0
1194176 3341882036842615342 3424 293 85.869995 1 0
1194177 3342163511619860078 3425 293 85.869995 1 0
1194178 3342163534744678030 3426 293 85.869995 1 0
1194179 3342163530200315950 3427 293 85.869995 1 0
... ... ... ... ... ... ...
6095648 3349284902051811182 3712 1499 85.809998 1 0
6095649 3349284897711474958 3713 1499 85.809998 1 0
6095650 3349284827668942798 3714 1499 85.809998 1 0
6095651 3349284830587971054 3715 1499 85.809998 1 0
6095652 3349284807188521198 3716 1499 85.809998 1 0

837006 rows × 6 columns

High level#

[39]:

intersects = vnp03.stare_intersects(other=state_sids, method=1, n_partitions=4)

[ ]:
